应用



application

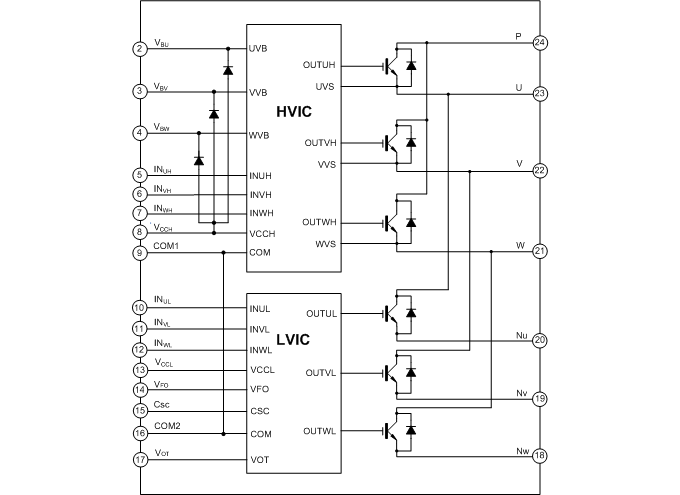

SD15G60FA是高度集成、高可靠性的3相无刷直流电机驱动电路，主要应用于较低功率的变频驱动，如空调、电冰箱、洗衣机等。内置了3相全桥高压栅极驱动电路和6个低损耗IGBT管。



SD15G60FA is a highly integrated, high reliability three-phase brushless DC motor drive circuit, mainly used in low power frequency conversion drive, such as air conditioning, refrigerators, washing machines and so on. A 3 phase full bridge high voltage gate drive circuit and 6 low loss IGBT tubes are built.



SD15G60FA内部集成了欠压、短路等各种保护功能以及温度输出，提供了优异的保护和宽泛的安全工作范围。由于每一相都有一个独立的负直流端，其电流可以分别单独检测。



SD15G60FA integrates under-voltage, short-circuit and other protection functions as well as temperature output, providing excellent protection and a wide range of safe operation. Because each phase has an independent negative DC terminal, its current can be detected separately.



SD15G60FA采用了高绝缘和易导热设计，提供了非常紧凑的封装体，使用非常方便，尤其适合要求紧凑安装的场合。



The SD15G60FA features a high insulation and easy thermal conductivity design, providing a very compact package that is very convenient to use, especially for applications requiring compact installation.



特点



Characteristic



内置6个低损耗600V/15A IGBT



Built in 6 low loss 600V/15A IGBT



内置高压栅极驱动电路(HVIC)



Built in high voltage gate drive circuit (HVIC)



内置欠压保护、温度输出、过流保护



Built in undervoltage protection, temperature output and over current protection.



内置带限流电阻的自举二极管



Bootstrap diode with built-in current limiting resistor



完全兼容3.3V和5V的MCU的接口，高电平有效



Fully compatible with 3.3V and 5V's MCU interface, high level effective



3个独立的负直流端用于变频器电流检测的应用



Application of 3 independent negative DC terminals for current detection of converters



报警信号：对应于低侧欠压和短路保护



Alarm signal: corresponding to low side undervoltage and short circuit protection.



封装体采用 Al2O3 DBC设计，热阻极低



The package is designed with Al2O3 DBC, and the thermal resistance is very low.



绝缘级别：1500Vrms/min



Insulation level: 1500Vrms/min
