  • 英飞凌IPM怎么样？还有其他品牌吗？
  • 本站编辑:杭州泰祺电子有限公司发布日期：2018-11-02 09:20 浏览次数：
富士IPM模块广泛应用于运动控制，伺服驱动器，电梯变频器，变频空调。

产品型号 参数说明 封装形式 下载
SIL型产品介绍
IKCS08F60F2A 8A@Tc=25℃,600V,兼容5V/3.3V输入,发射极开放 单列直插
IKCS08F60F2C 8A@Tc=25℃,600V,兼容5V/3.3V输入,发射极开放 单列卧插
IKCS12F60F2A 12A@Tc=25℃,600V,兼容5V/3.3V输入,发射极开放 单列直插
IKCS12F60F2C 12A@Tc=25℃,600V,兼容5V/3.3V输入,发射极开放 单列卧插
IKCS12G60DA 12A@Tc=25℃,600V,兼容5V/3.3V输入,发射极闭合 单列直插
IKCS12G60DC 12A@Tc=25℃,600V,兼容5V/3.3V输入,发射极闭合 单列卧插
IKCS17F60F2A 17A@Tc=25℃,600V,兼容5V/3.3V输入,发射极开放 单列直插
IKCS17F60F2C 17A@Tc=25℃,600V,兼容5V/3.3V输入,发射极开放 单列卧插
IKCS22F60F2A 22A@Tc=25℃,600V,兼容5V/3.3V输入,发射极开放 单列直插
IKCS22F60F2C 22A@Tc=25℃,600V,兼容5V/3.3V输入,发射极开放 单列卧插
IHCS22R60CE 两相开关磁阻电机专用型 单列直插
IHCS30R60CE 两相开关磁阻电机专用型 单列直插

SD30M60AC，士兰微SD30M60AC，SD30M60AC代理，SD30M60AC PDF，600V/30A 3相全桥驱动详细介召：


SD30M60AC描述：

SD30M60AC是600V/30A 3相全桥驱动的智能功率模块

SD30M60AC是高度集成、高可靠性的3相无刷直流电机驱动电路，主要应用于较低功率的变频驱动，如空调、洗碗机，工业缝纫机等。其内置了6个低损耗的IGBT管和3个高速半桥高压栅极驱动电路。

SD30M60AC内部集成了欠压、短路、过温等各种电路，提供了优异的保护和宽泛的安全工作范围。由于每一相都有一个独立的负直流端，其电流可以分别单独检测。

SD30M60AC采用了高绝缘、易导热的设计，提供了非常紧凑的封装体，使用非常方便，尤其适合要求紧凑安装的应用场合。

士兰微电子集合IGBT等高压功率器件和HVIC等高压集成电路方面的优先先优势，开发了多个IPM系列和产品，具有高可靠、小休积的特点，可广泛应用于20-3000W的变频电机驱动，以满足直流无刷化、调整变频化的需求。


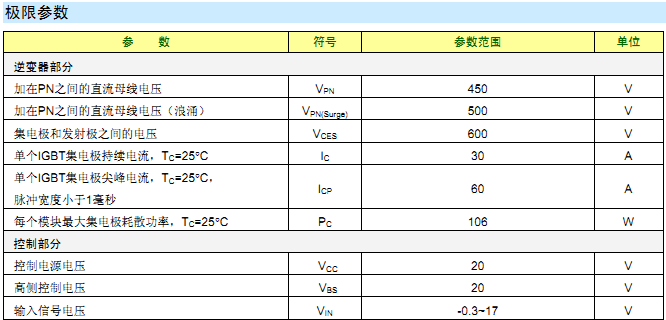

SD30M60AC主要特点：

       SD30M60AC内置6个600V/30A的低损耗IGBT

       SD30M60AC内置高压栅极驱动电路

       SD30M60AC内置欠压保护和过温、过流保护

       SD30M60AC内置自举二极管

       SD30M60AC完全兼容3.3V和5V的MCU的接口，高水平有效

       SD30M60AC有3个独立的负直流端用于变频器电流检测的应用

       SD30M60AC报警信号：对应于低侧欠压保护和短路保护

       SD30M60AC封装体采用DBC设计，热阻极低

       SD30M60AC绝缘级别达2500Vrms/min


SD30M60AC, SD30M60AC, SD30M60AC, SD30M60AC agent, SD30M60AC PDF, 600V/30A 3 phase full bridge drive detailed introduction:



SD30M60AC Description:



SD30M60AC is an intelligent power module driven by 600V/30A 3 phase full bridge.



SD30M60AC is a highly integrated, high reliability three-phase brushless DC motor drive circuit, mainly used in low power frequency conversion drive, such as air conditioning, dishwasher, industrial sewing machine, etc. It has 6 low loss IGBT tubes and 3 high-speed half bridge high voltage gate drive circuits.



SD30M60AC integrates under-voltage, short circuit, overtemperature and other circuits, providing excellent protection and a wide range of safe operation. Because each phase has an independent negative DC terminal, its current can be detected separately.



The SD30M60AC is designed to be highly insulated and heat-conductive, providing a very compact package that is very convenient to use, especially for applications requiring compact installation.



Shilan Microelectronics, which combines the advantages of IGBT and HVIC, has developed a number of IPM series and products with high reliability and small dead time. It can be widely used in 20-3000W frequency conversion motor drive to meet the demand of DC brushless and adjustable frequency conversion.





SD30M60AC main features:



SD30M60AC built in 6 600V/30A low loss IGBT



SD30M60AC built-in high voltage gate drive circuit



SD30M60AC built in undervoltage protection and over temperature and over current protection.



SD30M60AC built-in bootstrap diode



SD30M60AC is fully compatible with 3.3V and 5V's MCU interface, and is highly effective.



SD30M60AC has 3 independent negative DC terminals for current detection of converters.



SD30M60AC alarm signal: corresponding to low side undervoltage protection and short circuit protection.



The SD30M60AC package is designed with DBC, with very low thermal resistance.



SD30M60AC insulation level is 2500Vrms/min
